CABLE SURVEY REPORT

SS-2026-SAMPLE

Seneca Security Inc.

SAMPLECLIENT DATA REDACTED

Cable Tracing & Documentation / New York City

Cable tracing and as-built cable documentation

Every cable in your building: traced, pinned, tested, and handed over in writing.

You inherited a building with no documentation. You are planning a buildout and nobody knows what is behind the walls. You are settling a dispute about what was installed. We walk the property with an iPad, tone every run back to its head end, pin each termination on your floor plan, and deliver a package like this one.

Sample Loft Office

123 West Sample Street, New York, NY / Client details redacted

Survey method

iPad field survey / every run tone-traced to its head end

Deliverable

PDF report / Excel workbook / CSV schedule

Turnaround

Within one week of the final site visit

Pricing

Fixed-price quote after a short scoping call

Credentials

Licensed & insured / NYC & tri-state

This sample

57 cables / 6 cable types / 3,524 ft traced

Prepared for / your building

Start my report

Or download the full sample report: PDF and Excel, no email required.

Prepared by

Seneca Security Inc.

244 Fifth Avenue, Suite 2605, New York, NY 10001

Phone212-347-5400

Emailinfo@senecasecurity.com

Seneca Security Inc. / Low Voltage / High StandardsPage 1 of 8

Sheet 02 / 08 . Executive summaryThe one page your owner, GC, insurer or attorney will actually read.

Sample Loft Office: Executive Summary

123 West Sample Street, New York, NY

Survey October 8, 2026
57 cables / 1 floor

A field survey of low-voltage cabling was conducted at Sample Loft Office on October 8, 2026. 57 cables in 6 categories were located on the floor plan, traced to their head end, measured and tested. 11 runs failed and 2 could not be tested. Every one is listed with the reason.

Cables documented

1 floor / 6 cable types

3,524

Linear feet

avg 63 ft / 56 of 57 measured

77%

Pass rate

44 pass / 11 fail / 2 untested

Deficiencies

Each with a written cause

Cable inventory by type

Test results by type

Pass (44) Fail (11) Untested (2) Number shows failures

Finding 1

Half the coax is dead

3 of 6 TV feeds failed. Plan the AV refresh around new pulls, not re-use.

Finding 2

The boardroom needs work first

Floor box shorted (DATA-02) and a dead ceiling speaker (SPKR-02) in the room clients see.

Finding 3

Cheap wins before new cable

2 live runs never terminated. 1 booth locked during survey. Neither needs a new pull.

Sample Loft Office / SS-2026-SAMPLEExecutive Summary / 2 of 8

Sheet 03 / 08 . Floor-plan overlayLive. Hover or tap any pin. Every termination ties to exactly one row.

Sample Loft Office: Seventh Floor

57 of 57 cables shown / 11 failed / 2 untested

Red ring = failed test / Gray ring = untested / Numbers run per cable type

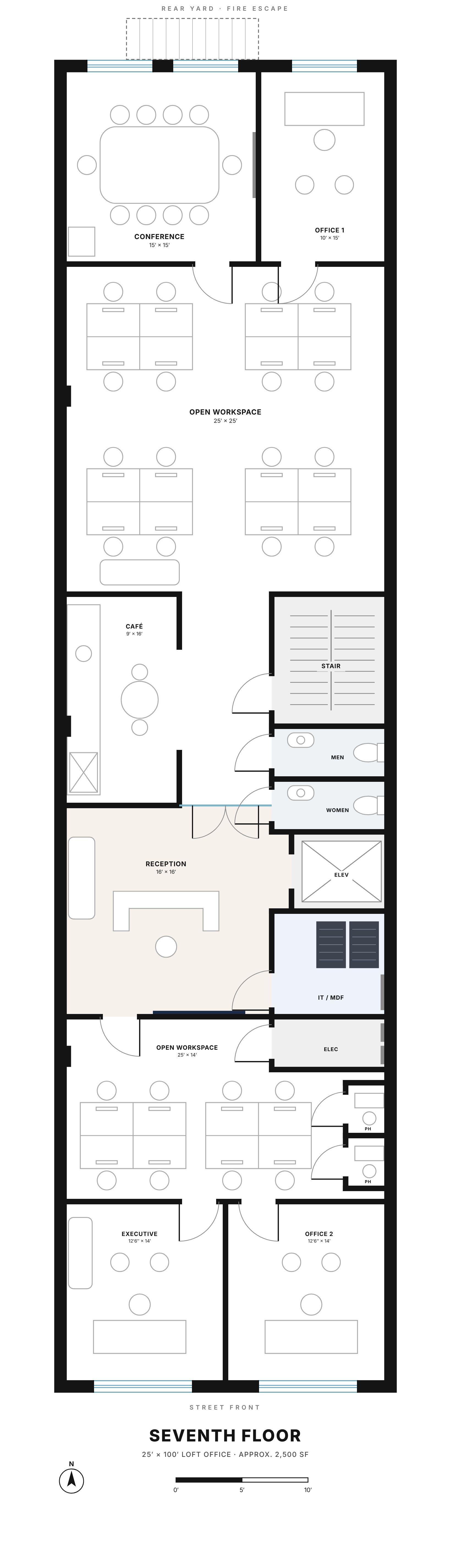

Seventh floor plan of a 25 by 100 foot loft office: conference room and office at the rear, open workspace, cafe, core with stair, restrooms, elevator and IT room, reception, second workspace, executive office and office at the street front
