Crestron Repair · NYC

Crestron AV System Repair:
4-Series, 3-Series, DM Matrix, and Legacy Programs.

Crestron is the enterprise AV control standard across NYC: Midtown boardrooms, Downtown law firms, financial trading floors, Columbia and NYU conference rooms, and the high-end residential Crestron Home line. We handle the hardware side of Crestron service across orphaned installs: processor and touchpanel replacement, DM matrix and DM NVX diagnostics, network, rack and cable work. Program changes to the room are scoped per job.

Enterprise AV Service Hardware Repair Same-Day Available

Call 212-347-5400 Request Quote

The Crestron Position

Why Crestron Repair Has Two Sides

Crestron dominates enterprise AV control for a reason: the platform is powerful, infinitely configurable, and backed by an ecosystem that keeps installs running for decades. The flip side is that every Crestron install carries custom programming that effectively becomes the only working documentation of what the room does.

When the programmer or integrator leaves, the programming often disappears with them. The install still works until something changes: a laptop no longer handshakes, a new camera needs to be added to a Zoom Room, a Teams Rooms migration requires DM NVX routing changes. Without the original programming materials, these changes are difficult without starting over.

We handle the hardware side of orphaned installs directly: processor and touchpanel replacement, DM matrix diagnostics, DM NVX network integration, cable work, and rack work. Program changes to the room are scoped per job when the room needs new functionality.

Model Lines We Service 06

The Crestron Hardware in NYC Boardrooms

The Crestron catalog is wide. These are the lines we encounter most across NYC commercial and residential.

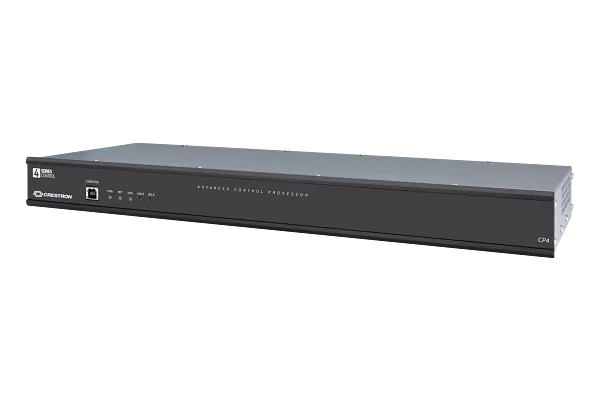

Current Control Processors (4-Series)

Current-generation control processors running Crestron 4-Series firmware. Shipped since 2016, found in most post-2017 commercial installs.

ModelsCP4, CP4N, PRO4, RMC4, MC4-R

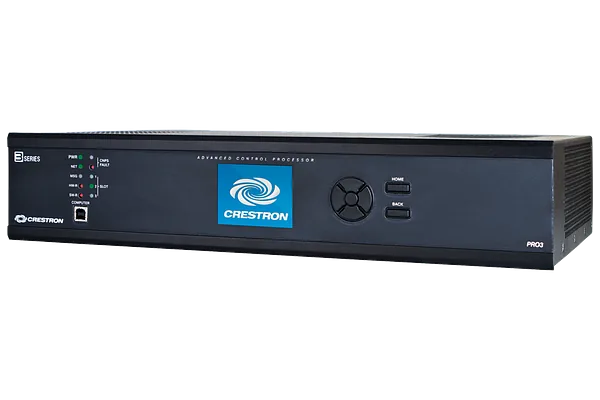

Legacy 3-Series Processors

Previous-generation processors still running the majority of NYC installed boardrooms. End-of-life for new features, still supported for firmware patches.

ModelsPRO3, CP3, CP3N, MC3, RMC3, AV3

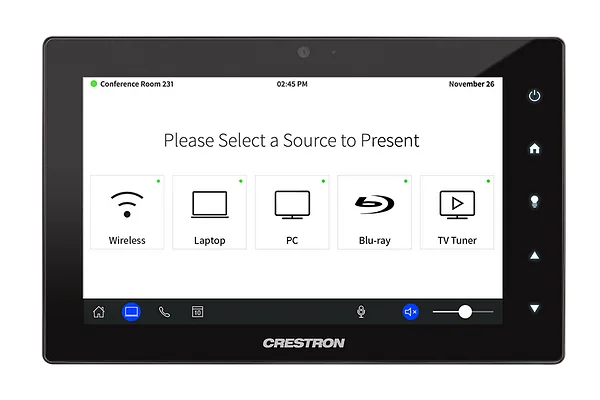

Touch Panels

In-wall, tabletop, and handheld touchpanel user interfaces. Primary user-facing failure point. Firmware tightly coupled to processor firmware generation.

ModelsTSW-760, TSW-1070, TS-1070, TSS-7, TPMC-9L (legacy)

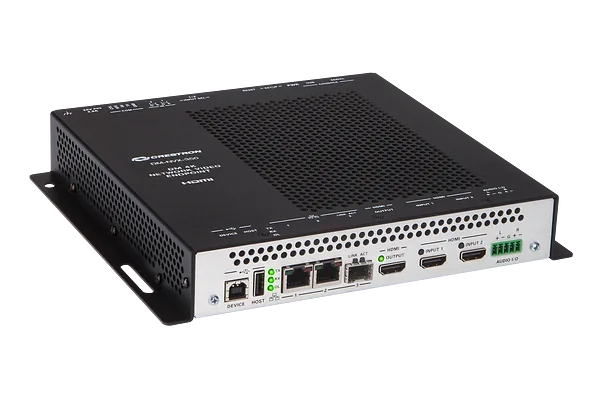

DM NVX / DM Pro AV-over-IP

Crestron video distribution over 1G/10G IP. Replaces the DM matrix generation for new installs. Common for digital signage and conference-room video routing.

ModelsDM-NVX-350, DM-NVX-363, DM-NVX-E30, DM-NVX-D30

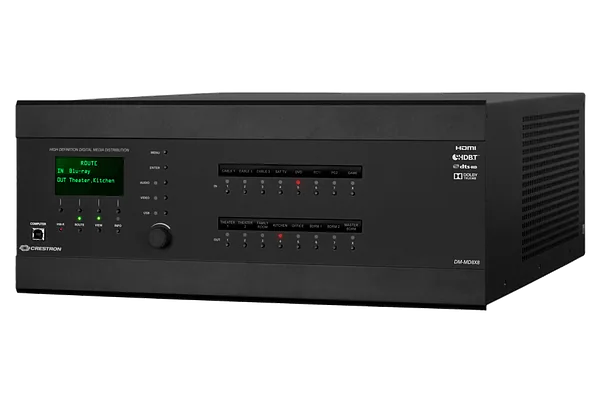

DM Matrix Switchers (Legacy)

Previous-generation HDMI matrix switchers at the heart of 2010 to 2018 conference-room AV installs. Being phased to NVX for new work.

ModelsDM-MD8X8, DM-MD16X16, DM-MD32X32, HD-MD-400-C-E

Crestron Home (Residential OS)

Residential OS layered on 4-Series hardware, Crestron's answer to Control4. Growing in NYC luxury residential 2020 onward.

ModelsCrestron Home on CP4-R, Crestron Home iPad app

Common Crestron Failures 05

What We See in the Field

Crestron hardware failures are specific; code-dependency failures are universal. These are the calls we take most often.

Programmer dependency and code loss

Crestron programs live as compiled files owned by the programmer or shop that wrote them. When the programmer leaves or the shop closes, undocumented systems become difficult to modify without starting over. Program changes to the room are scoped per job when the room needs new functionality.

Affects: PRO3, PRO4, CP3, CP4

Touch panel firmware drift from processor

TSW-760 and TSW-1070 panels show firmware-mismatch warnings and lose functions when processor firmware updates past the panel firmware. A panel reflash fixes it; the reflash is scoped per job.

Affects: TSW-760, TSW-1070, TPMC-9L

CP3 and PRO3 PCB failures from power events

3-Series control processors develop board-level failures after power surges, lightning events, or UPS failures. Shows as processor failing to boot or boot-loop. Replacement with 4-Series is often cheaper than board repair.

Affects: PRO3, CP3, MC3

DM matrix HDMI card EDID corruption

DM-MD matrix switchers cache EDID per output. After source or display swaps the cached EDID can corrupt, causing resolution-handshake failures. Clearing the EDID cache from the matrix web UI is the fix.

Affects: DM-MD8X8, DM-MD16X16, DM-MD32X32

DM NVX unicast flooding on misconfigured switches

NVX endpoints use multicast. On commodity switches without IGMP snooping, NVX traffic floods the network and takes down nearby VoIP and other services. Not an NVX failure per se but a very common install problem.

Affects: DM-NVX-350, DM-NVX-363, DM-NVX-E30

Hardware Service and Program Scope

The Service Specifics

Hardware service on installed Crestron systems is widely available, and we handle it directly: processor and touchpanel replacement, DM matrix diagnostics, DM NVX network integration, and the rack and cable work around a room. Program changes to the room are scoped per job.

For Crestron Home residential installs, we handle the hardware and network side directly. Program changes to the room are scoped per job when the room needs new functionality.

Older Crestron We Still Fix 03

The Legacy Platforms

Pre-4-Series Crestron that still runs in long-tenured NYC installs.

Legacy 01

CNX expansion cards and CEN gear

Pre-4-Series expansion and control cards (CNX-DVP4, CNX-RMC and similar) that plugged into the 2-Series MP2E Y-Bus, plus CEN-era network hardware from the pre-TSW, pre-DM period. Parts via secondary market only. We service these to buy time or plan a 4-Series migration.

Legacy 02

MP2E and QM-RMC series

2-Series era, firmware frozen, functional for simple control but no new driver support. Common in older conference rooms.

Legacy 03

Resistive-touch TPS panels

Pre-TSW era touchpanels, replaced by current TSW generation for any serious use. We can keep these working until a touchpanel refresh is budgeted.

Related Symptom Pages 03

If Your Specific Problem Is...

For a specific Crestron symptom, these are the pages you want.

01 / Symptom

Conference Room AV Not Working

Boardroom AV emergency where the Crestron processor, touchpanel, or matrix is involved. Same-day dispatch for pre-meeting situations.

Conference room AV → 02 / Symptom

TV or Display No Signal

DM matrix or NVX routing issue causing no-signal at a specific display.

Display repair → 03 / Symptom

All Audio Video Repair

Full Crestron and other-brand AV repair across NYC.

AV repair hub →

Frequent Questions 06

Crestron Repair FAQ

Our Crestron programmer is unreachable. Can you still make changes to the room?

Yes. We handle the hardware, rack, network and cable work directly, and we scope program changes per job when the room needs new functionality. The hardware side (processor swap, touchpanel replacement, DM matrix or DM NVX work) is same-visit for most situations; program changes we quote with a defined scope so you know exactly what the engagement covers.

Our PRO3 processor died after a power event. Repair or replace?

Replace with 4-Series in most cases. 3-Series processors are end-of-life for new features and board-level repair runs into the same cost as a current CP4. The CP4 preserves most of the program logic (with recompile) and gives you a current-generation controller with ongoing firmware support. We quote the swap honestly.

Our touchpanels show firmware mismatch warnings. Fixable?

Yes. Processor and touchpanel firmware get out of sync when one is updated and the other is not. A panel reflash fixes it, and we scope that work per job. Common TSW panels are same-visit. For older TPMC panels that cannot accept current firmware, we recommend replacement.

We are deploying DM NVX. Why does it take down our VoIP?

NVX uses multicast heavily and will flood any network without IGMP snooping enabled. The flooding affects adjacent VoIP, printers, and anything latency-sensitive. The fix is network-side: enable IGMP snooping on the switches, verify querier placement, and segment NVX onto its own VLAN. We handle both the NVX and the network side.

Can you work on Crestron Home residential installs?

Yes. Crestron Home is 4-Series hardware with a residential OS layer. We handle the hardware and network side directly, and program changes to the room are scoped per job.

How fast can you come out?

Same-day across NYC when the schedule allows, with absolute priority for pre-meeting boardroom emergencies. Call 212-347-5400 and tell us the meeting deadline; we will give you an honest window.

Crestron Service Across NYC

Crestron Install Need Service? We Handle the Hardware and Coordinate the Rest.

Any generation of Crestron hardware. Licensed and insured. We handle the hardware, rack and network side, and scope program changes per job.
