Russound Multi-Room Audio Repair:
MCA, UNO, XSource, and the Pre-MCA Era.
Russound is a staple of NYC co-op, condo, and brownstone whole-house audio from the mid-2000s onward. We service the MCA controller amp line, keypads, streaming sources, outdoor speakers, and the pre-2008 CAM/CAV era that most other shops will not touch.
Where Russound Lives in NYC
Russound built its position in NYC through mid-2000s and 2010s whole-house audio installs: pre-war brownstones, co-op apartments, and condo units where the owner wanted zoned audio but did not need the full Crestron or Control4 ecosystem price point. The core product is the MCA controller amp, a 1U chassis that drives multiple zones from one unit.
The appeal was simplicity: install one MCA, keypads in each room, and a streaming source, and you have whole-apartment audio without a programmer-dependent control system. The install base is wide and the hardware is still shipping in current form, so repair is almost always a cleaner call than a rip-and-replace.
The pre-MCA era (CAM 6.6, CAV 6.6, Collage) is where most legacy service calls land. These systems from the early 2000s still run in older buildings, parts are thin but not gone, and keeping them operational is usually cheaper than modernizing to current MCA or jumping to a different brand.
The Russound Hardware in NYC Buildings
The lines below cover the great majority of Russound installs we see in the field.

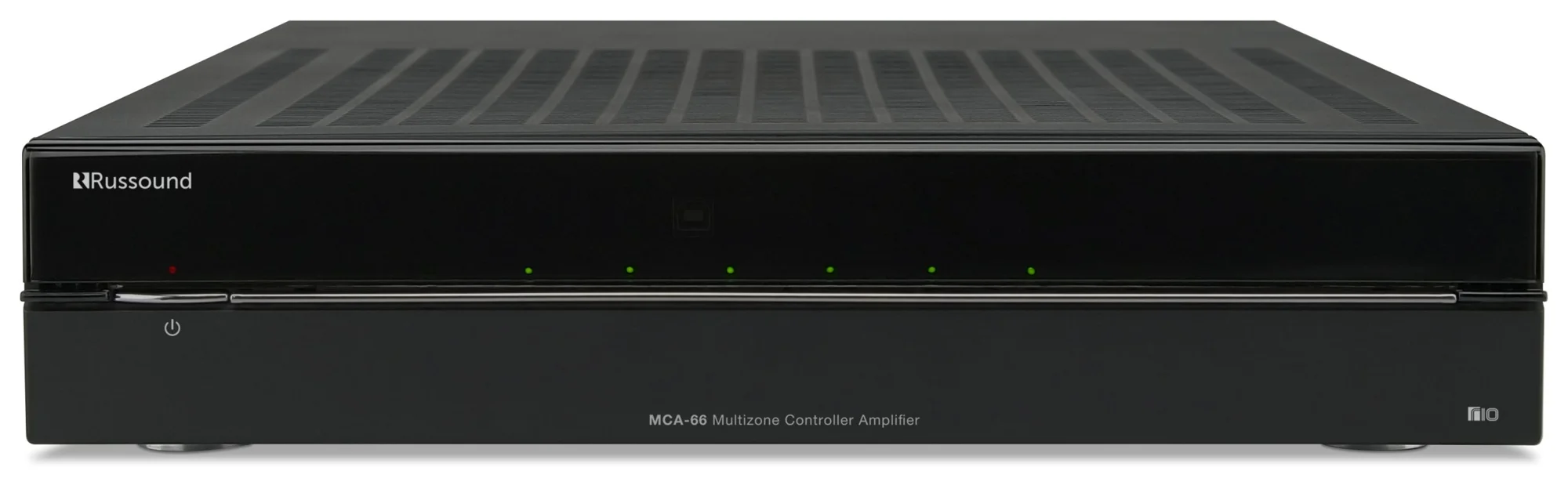

MCA Series (Controller Amplifiers)
Core multi-zone controllers combining amplification and zone routing. The spine of most Russound installs in NYC: one or two of these in the equipment closet drive the whole system.

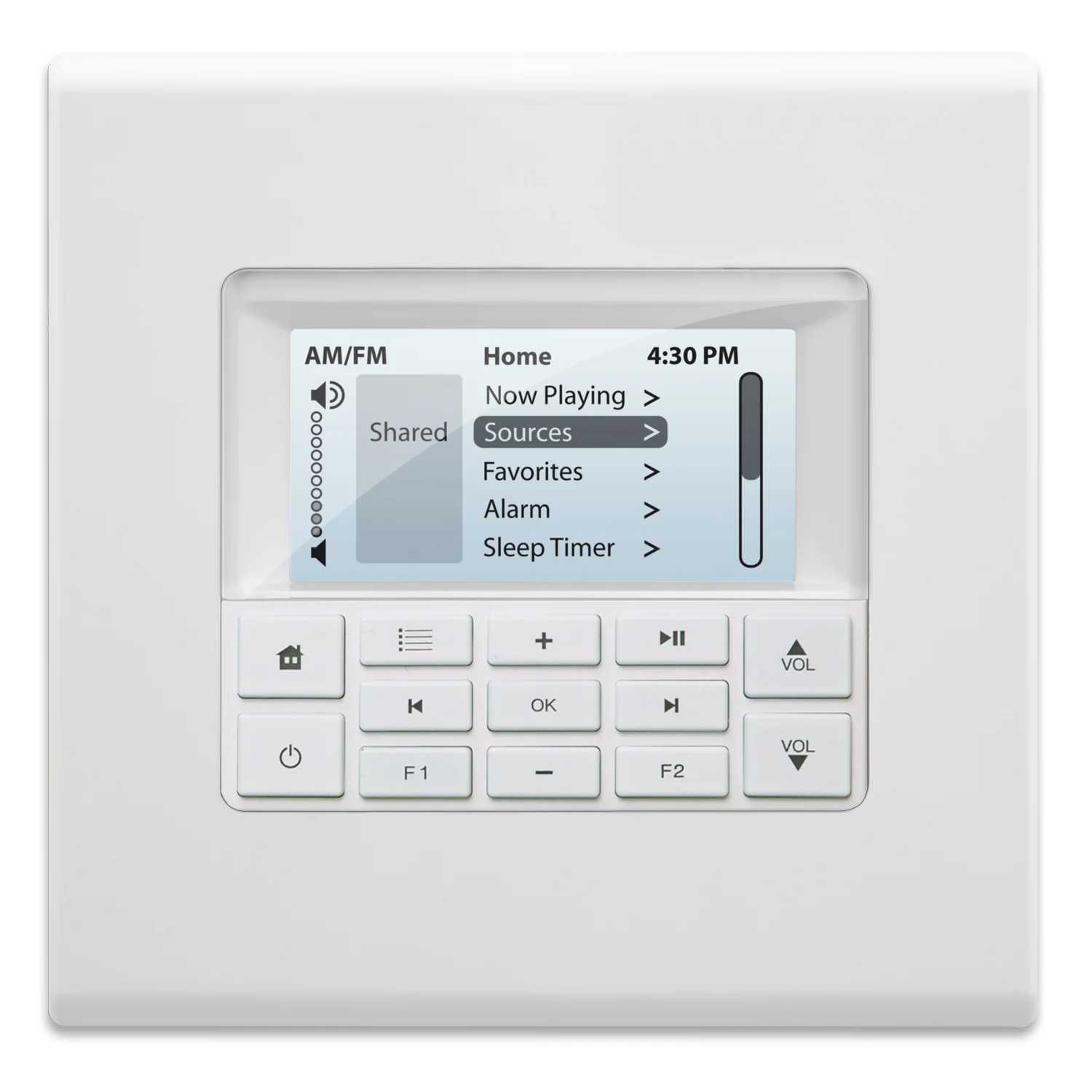

MDK / UNO / XZone Keypads
In-wall control points for zone source and volume. The most-replaced component in Russound installs due to touchscreen aging and glass wear.

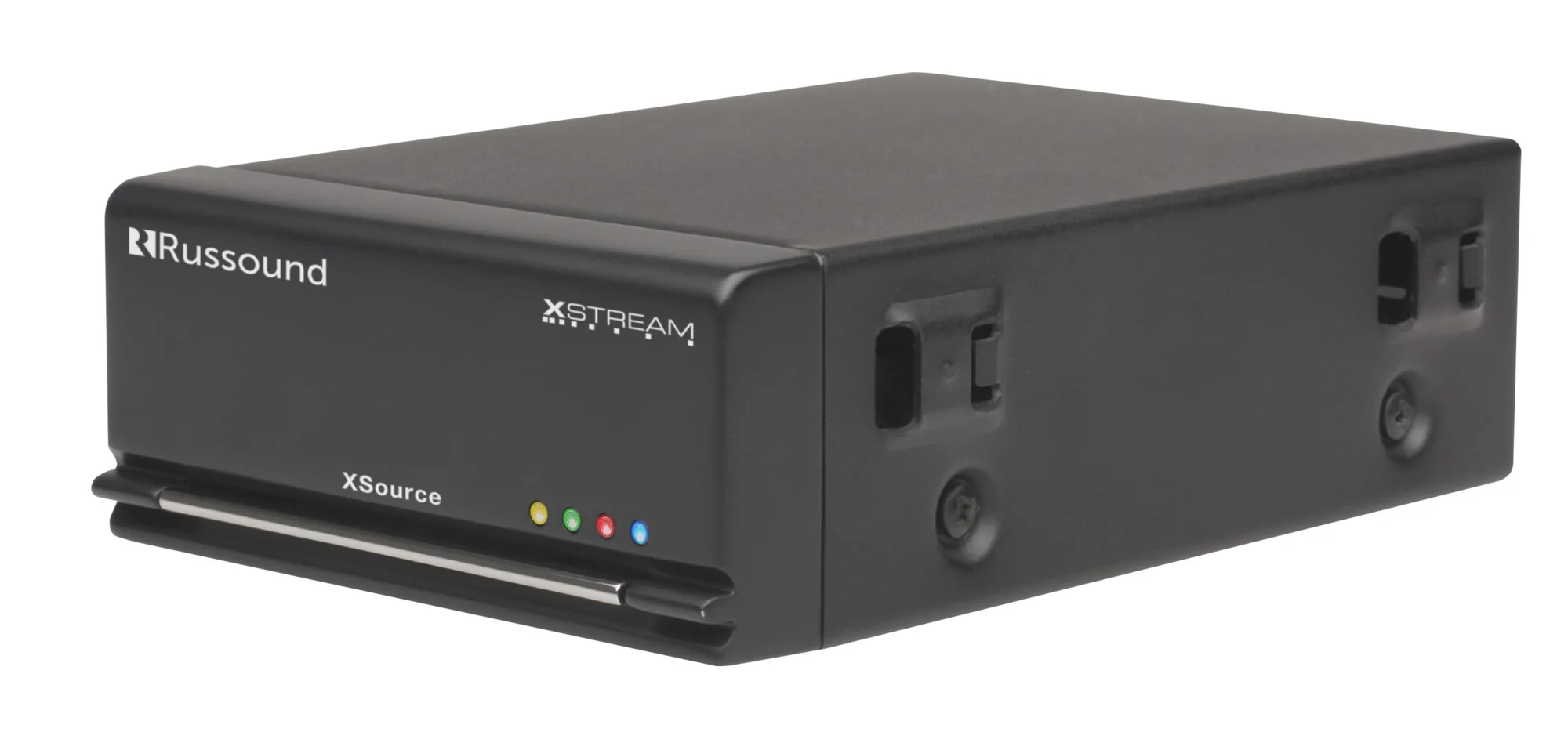

XSource / X Streaming Sources
Network streaming modules integrating Pandora, TuneIn, Spotify, and local DLNA into the Russound audio bus. Age-driven service calls as streaming APIs change.

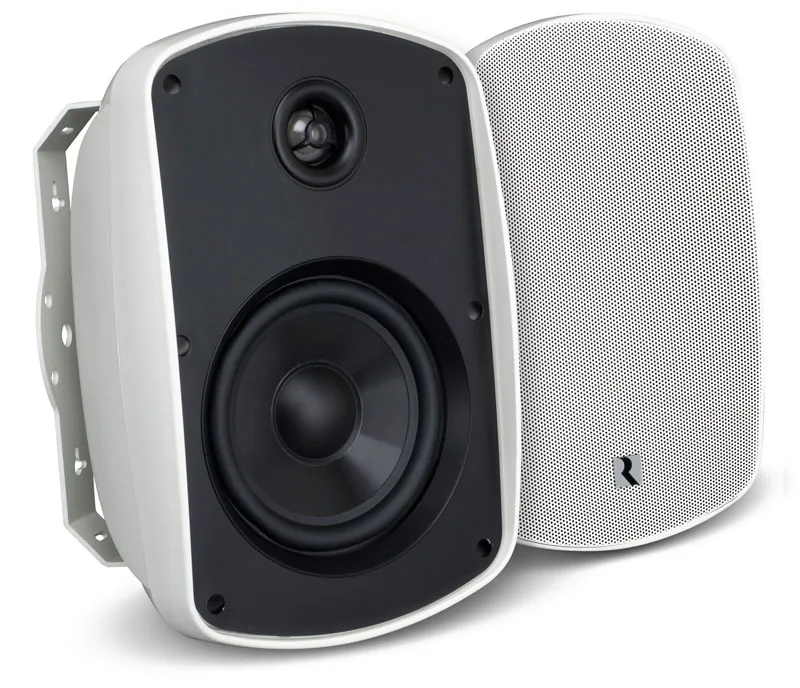

Acclaim and OutBack Speakers
Branded speaker lineup matched to the MCA power ranges. Indoor Acclaim series fail rarely; outdoor OutBack rooftop and patio units see weather-driven failures.
Russound App and RNET Protocol
Control app layer plus the underlying serial bus that ties keypads, sources, and controllers together. Many issues trace to RNET addressing drift, not hardware failure.
What We See in the Field
Russound hardware fails in a short list of recognizable ways. These are the calls we take most often.
Zone amp output failure
One or more zones go silent while others work. The MCA chassis amplifies each zone discretely, so a blown output stage affects one zone cleanly. Usually a short on the speaker line or a dead output transistor.
Affects: MCA-66, MCA-88, MCA-C5
Keypad touchscreen aging and ghost touches
UNO-S2 and later keypads use resistive touch overlays that degrade over time in service. Shows up as missed presses or phantom touches that select unwanted zones or sources. Replacement is the fix.
Affects: UNO-S2, UNO-TS2, MDK-C6
Streaming source cannot authenticate
XSource and X5 lose Pandora or TuneIn login after service-side API changes. Firmware updates addressed many of these, but installs that never received the update show the symptom permanently.
Affects: XSource, XStream X5
RNET bus addressing drift
After a keypad swap or controller reboot the RNET bus can lose addressing on specific devices. Keypads come up blank or zones vanish from the app. Not hardware failure, just needs on-site rebind.
Affects: Any RNET-bus install
Outdoor speaker water intrusion
OutBack rooftop and patio speakers lose their gasket seal around year 5 to 7 in NYC weather. Water gets into the enclosure, corrodes the voice coil, dulls or kills the sound.
Affects: OutBack 5B65mk2, OutBack 5B55mk2
The Service Specifics
Russound uses a dealer network but does not lock service tightly, so independent shops with the right tools and Russound app access can work on anything in the MCA generation. Firmware updates come through the dealer portal and we pull them as needed.
Admin recovery on Russound app accounts requires owner proof plus a call to Russound support, which they typically handle within a business day. Account transfer during ownership or management change is well-trodden ground.
The Pre-MCA Era
Russound has been in NYC long enough that we routinely service model lines no longer sold.
CAM 6.6 and CAV 6.6 controllers
Early 2000s pre-MCA generation, still running in pre-2008 brownstone installs. Parts availability is limited but we source replacement amp modules and keep these systems operational.
CAS-44 Collage system
Discontinued compact zone system from the mid-2000s. We keep a handful running where the keypad bus has not failed. Full replacement is the only path when it finally gives up.
RNET-era wired KSP keypads
Pre-touchscreen keypads from the first generation of RNET controllers. Replaceable with current UNO keypads via an RNET translator or direct wiring update.
If Your Specific Problem Is...
For a specific Russound symptom you are diagnosing, start on the matching symptom page.
Russound Repair FAQ
Russound System Needs Service? We will Keep It Running.
Any vintage, any zone count, same-day when we can. Licensed and insured, and we handle pre-MCA era systems other shops will not touch.
