Valcom Paging & Clock Repair:
VIP-PC, EZ-PC, V-9972, VIP-801A, IP6000, School Clocks.
Valcom is the overhead paging standard across NYC schools, warehouses, offices, and houses of worship. We service the current VIP-PC and EZ-PC hybrid page controllers, the still-shipping V-9972 Universal Paging Interface on analog 70V bus, the VIP-801A and VIP-802B IP gateways, the VIP-201A and VIP-204B PagePro IP paging servers, the IP6000 Site Manager, and the V-CCU, V-GPSA, and V-WMCA school clock infrastructure.
Where Valcom Lives in NYC
Valcom is the overhead paging and clock standard across NYC commercial. Schools (public and private), warehouses, large offices, parking structures, and houses of worship all run Valcom somewhere in the ceiling. The product is unassuming but mission-critical: when the paging system fails during an emergency, the building's announcement capability goes with it.
The current line is built on hybrid IP controllers: VIP-PC3 and VIP-PC6 for larger IP paging deployments, EZ-PC3 and EZ-PC6 for smaller sites in the ezIP compact family. Both can drive legacy 25V and 70V horns and ceiling speakers alongside IP endpoints. The V-9972 Universal Paging Interface is still shipping new for cost-sensitive installs and 70V retrofits where SIP integration is not required.
SIP paging goes through the VIP-801A single-port, VIP-802B dual-port, and VIP-804B quad-port IP gateways, with VIP-201A and VIP-204B PagePro IP servers tying zone paging to the phone system. School clock-and-bell systems built on V-CCU, V-GPSA GPS master, and V-WMCA wireless transceiver are a specific Valcom specialty and a frequent service call.
The Valcom Hardware in NYC Buildings
Across the current VIP-PC and EZ-PC generation and the still-shipping V-9972 analog line, these are the product families we encounter most.

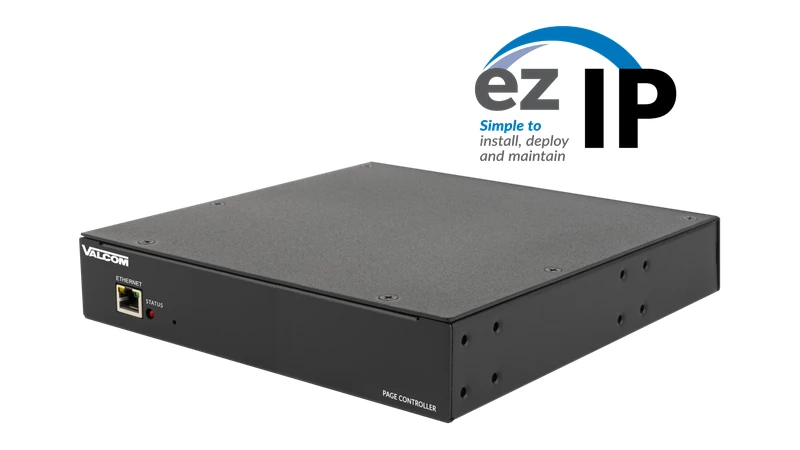

VIP-PC and EZ-PC Hybrid Page Controllers
The current Valcom next-generation page controller family. VIP-PC3 and VIP-PC6 are IP page controllers for 3-zone and 6-zone installs. EZ-PC3 and EZ-PC6 are compact ezIP hybrid controllers for smaller sites. All four drive IP and 25V or 70V analog speaker lines from the same chassis, and all four talk SIP back to the phone system for paging triggers.

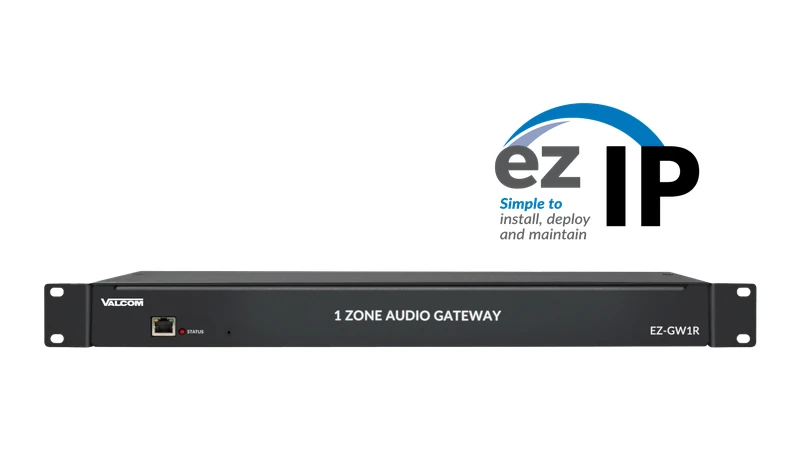

EZ-IP Compact Networked Gateways
The ezIP peripheral line that pairs with EZ-PC controllers. EZ-GW1R is the single-port rack network audio gateway, EZ-GW1W is the wall-mount version. EZ-GW24 is a 24-port one-way gateway for larger ezIP builds. Together these connect legacy analog paging ports and relay inputs into an EZ-PC controller over the data network.

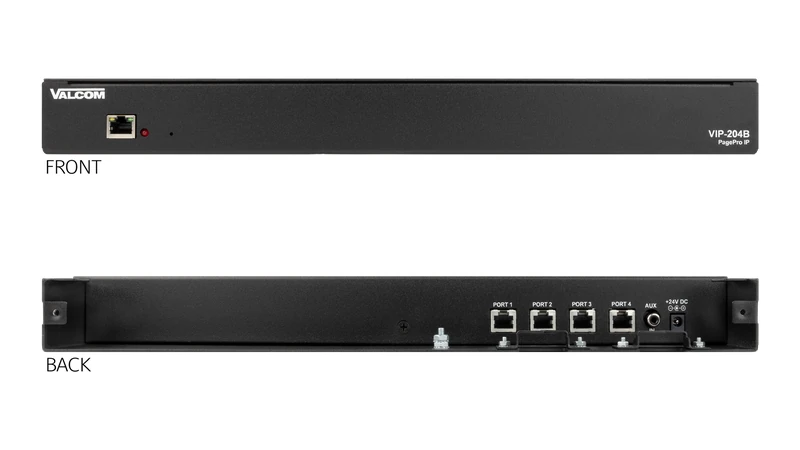

VIP IP Gateways and PagePro IP Paging Servers
The VIP-801A-V4 is a single-port IP network audio gateway (also sold as VIP-801A-IC-V4 for InformaCast and VIP-801A-SA-V4 for Intrado SynApps). VIP-802B is dual-port, VIP-804B is quad-port. VIP-201A and VIP-204B are SIP-based PagePro IP paging servers that combine 1 or 4 analog paging outputs with 8 additional IP zones.

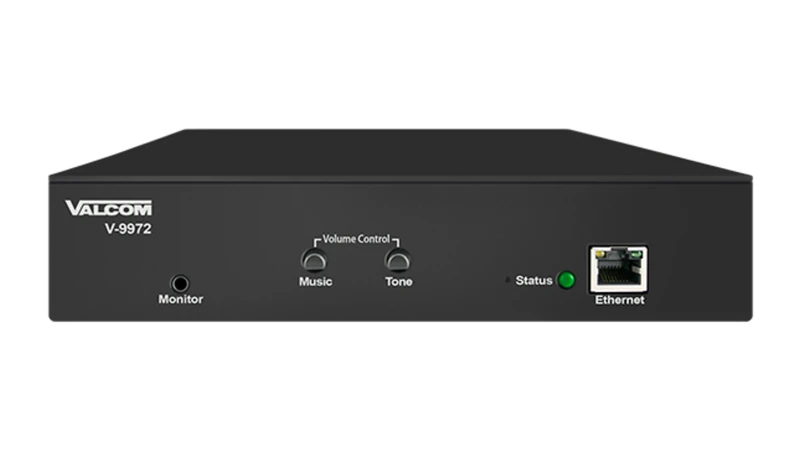

V-9972 Universal Paging Interface (Analog, Still Shipping)
The V-9972 is Valcom's long-running analog Universal Paging Interface. Still manufactured and still being installed today for projects where SIP integration is not required or where a 70V retrofit onto existing speaker runs is cheaper than a full IP buildout. V-9972-2 adds a license pack. Legacy V-ACS25 and V-ACS45 Advanced Communication Systems in 24-zone, 48-zone, and 72-zone configurations run alongside.

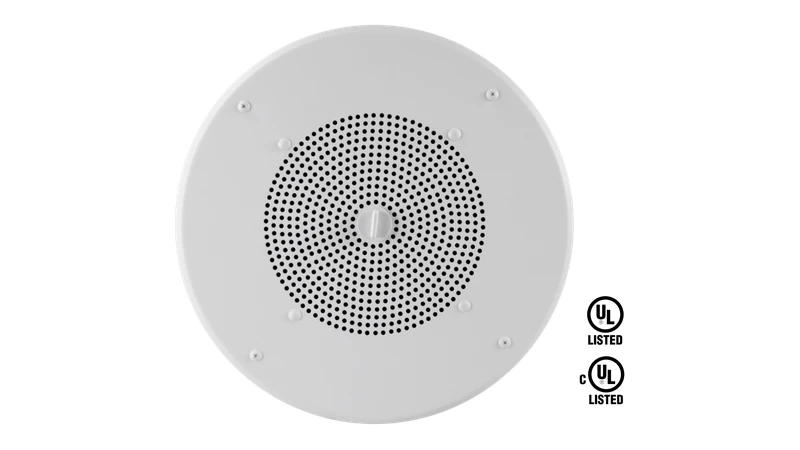

Horns, Ceiling Speakers, Doorplates
The peripheral catalog. One-way horns: V-1030C 5W, V-1036C-GY 15W, V-1038 30W, V-1039A explosion-proof. Talkback horns: V-1048C-GY, V-1090-W FlexHorn. Vandal-resistant: V-9880, V-9885. Ceiling speakers: V-1010C 4-inch, V-1020C 8-inch, V-1060A talkback, V-1420 Signature Series high-fidelity. Doorplate intercom speakers: V-1072A-ST stainless, V-1073 vandal-resistant, V-1074 surface mount.

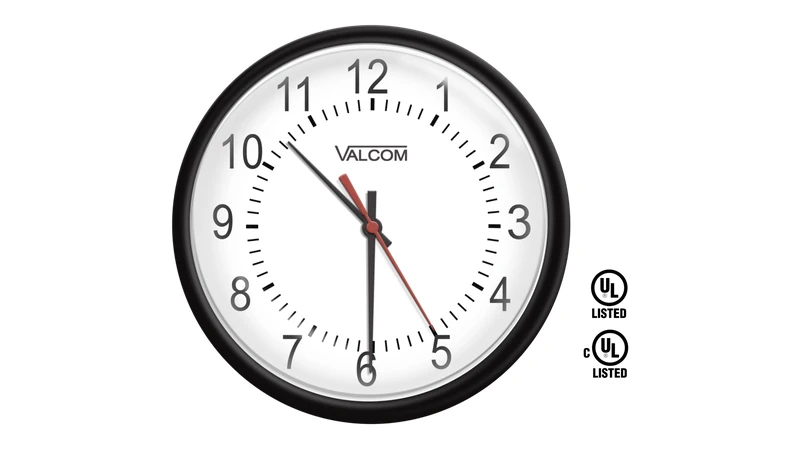

Clock and Bell Systems
Networked clock-and-bell infrastructure for schools. V-CCU is the Clock Controller Unit, V-VCU is the clock controller package, V-GPSA is the 19-inch rack-mount GPS master clock, V-WMCA is the wireless master transceiver, V-WMCRA is the repeater. Analog wired clocks are V-A11012B 12-inch and V-A11016B 16-inch; wireless are V-AW12B and V-AW16B. VEA12A and VEA16A are IP PoE analog clocks, with VE4122-A12 ceiling-speaker-plus-clock kits for retrofit.
What We See in the Field
Valcom failures follow a predictable list. We work through them in order from most common to rare.
Paging amplifier card failure on a VIP-PC, EZ-PC, or V-9972
The internal amp card inside a VIP-PC or EZ-PC chassis, or the amp stage on a V-9972, fails from heat and age. Symptom is a specific zone or paging line going silent while others on the same controller work. Card swap on the VIP-PC or EZ-PC, or module-level service on the V-9972, is the standard fix.
Affects: VIP-PC3, VIP-PC6, EZ-PC3, EZ-PC6, V-9972
SIP registration dropout after a phone-system change
Any Valcom controller that triggers paging from a SIP call (VIP-PC, EZ-PC, VIP-201A, VIP-204B, VIP-801A-V4) loses SIP registration when the office phone vendor changes or the SIP trunk configuration drifts. The paging bus goes quiet even though the controller is otherwise healthy. Re-provisioning the SIP settings against the new phone platform fixes it, usually in one visit.
Affects: VIP-PC3, VIP-PC6, EZ-PC3, EZ-PC6, VIP-201A, VIP-204B, VIP-801A-V4
70V speaker-line short tripping the amplifier
Water intrusion, damaged speaker wire in a riser, or a shorted horn pulls the amp into protection and kills a zone output. Common on older buildings where the 70V run has been in place for decades. We trace the line to the specific speaker, isolate the short, and re-energize the zone.
Affects: V-9972 and VIP-PC / EZ-PC analog outputs driving V-1030C, V-1038, V-1020C, V-9880
Paging-input relay wear on legacy analog controllers
Mechanical paging-trigger relays on V-9972, V-2000A, and older V-ACS cards wear out after years of daily duty cycles. The symptom is intermittent paging: works sometimes, fails other times, with no pattern. Relay replacement at the controller card, or in some cases a swap to a modern VIP-PC or EZ-PC head-end.
Affects: V-9972, V-2000A, V-9941A, V-ACS25, V-ACS45
Clock drift and bell schedule loss on V-CCU or V-GPSA systems
Analog school clocks fall out of sync when the V-CCU or V-GPSA master drifts from its reference or the V-WMCA wireless transceiver loses line of sight to a secondary. In schools this shows up as bells firing a few minutes early or late. Resync at the master, or replacement of a failed transceiver module. Same-visit in most cases.
Affects: V-CCU, V-VCU, V-GPSA, V-WMCA, V-WMCRA
VIP-801A or VIP-802B gateway offline after a VLAN or firewall change
VIP-801A-V4, VIP-802B, VIP-804B, VIP-811A, and VIP-812B gateways depend on a stable network path back to the VIP-PC or IP6000 Site Manager. ISP router swaps, switch replacements, and VLAN re-tagging break the controller-to-gateway handshake without any symptom at the gateway itself. We reconfigure the static IPs, confirm firewall rules, and re-register the gateway.
Affects: VIP-801A-V4, VIP-802B, VIP-804B, VIP-811A, VIP-812B
The Service Specifics
Valcom distributes through authorized channels but does not lock service the way a cloud-only platform does. Firmware for VIP-PC, EZ-PC, VIP-201A, VIP-204B, and the VIP-801A IP gateway family is available through the distributor portal, and we pull it as needed. The V-9972 analog line does not require firmware.
SIP integration is the single most common Valcom service call. VIP-PC, EZ-PC, and the PagePro IP servers register against the client's phone platform (Mitel, 3CX, Cisco, FortiVoice, RingCentral, FreePBX, Avaya) for paging triggers. When the phone platform changes or the SIP trunk is re-provisioned, the paging controller loses registration and goes quiet. We work alongside the phone-system provider to re-provision the paging bus and restore service.
Clock-and-bell systems built on V-CCU, V-GPSA, and V-WMCA need periodic resync and secondary-clock audits. For schools under Alyssa's Law notification requirements the clock side ties directly to the emergency announcement path, so we audit both together on each visit.
The Legacy Install Base
Pre-current-generation Valcom still running in NYC schools and commercial sites.
V-ACS25 and V-ACS45 Advanced Communication Systems
24-zone analog paging controllers in 25-ohm (V-ACS25) and 45-ohm (V-ACS45) variants, expandable with V-ACS-X48 and V-ACS-X72 cards. Not current but fully serviceable. We keep them running on existing 70V infrastructure, replace failed amp cards, and plan the migration to VIP-PC or EZ-PC when the owner is ready.
Discontinued page controllers pre-dating VIP-PC
Earlier generations of Valcom hybrid and analog page controllers that pre-date the VIP-PC and EZ-PC line are still in service across older NYC schools and offices. Parts are getting thinner. We service in place where possible, and when a controller finally fails we drop in a VIP-PC or EZ-PC that drives the same existing speaker runs with no re-wiring.
