HID Access Control Repair:
iCLASS SE, Signo, Prox Legacy, Mobile Access.
HID Global is the credential-reader industry standard across US commercial access control, with the broadest reader-to-controller compatibility in the business. In NYC commercial we see HID in almost every enterprise install from 2000 onward, mixed into Lenel, Software House, Honeywell, and Genetec environments as the credential layer.
Why HID Is Everywhere in NYC Enterprise
HID Global (an Assa Abloy division) is the credential-reader industry standard across US commercial access control. The company's install base in NYC spans every major enterprise category: Class A office towers, hospitals, financial services, universities, government buildings. Readers from the Prox era (1998-2012) through current Signo generation are all represented in buildings we service.
The strategic position is credential compatibility. HID readers work with Lenel, Software House, Honeywell, Genetec, Brivo, and most other controller brands, which means a building can swap controllers without replacing the readers (and vice versa). This matters for migration and takeover scenarios.
The service story centers on reader lifecycle (Prox is 10+ years old on most installs, with range degradation), OSDP migration from Wiegand, and Mobile Access / Origo admin recovery when management companies change.
The HID Hardware in NYC
Readers, controllers, encoders, and mobile credentials across HID's commercial lineup.

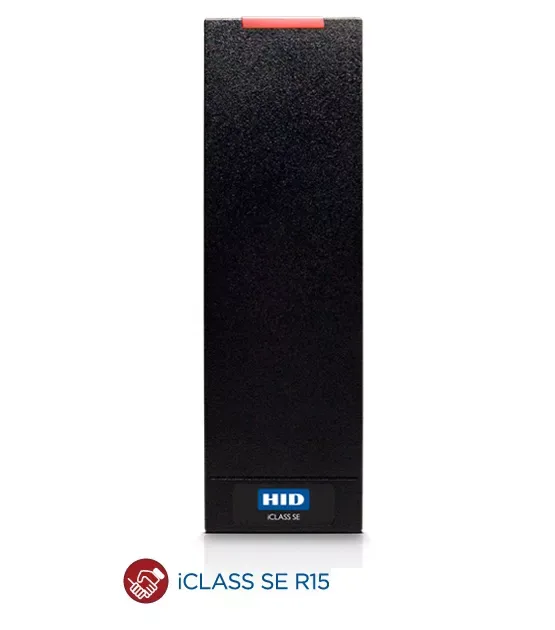

iCLASS SE Readers
Modern smart-card readers supporting SEOS, iCLASS SE, Prox, and mobile credentials with configurable Wiegand or OSDP output. The most-installed HID line in NYC commercial.

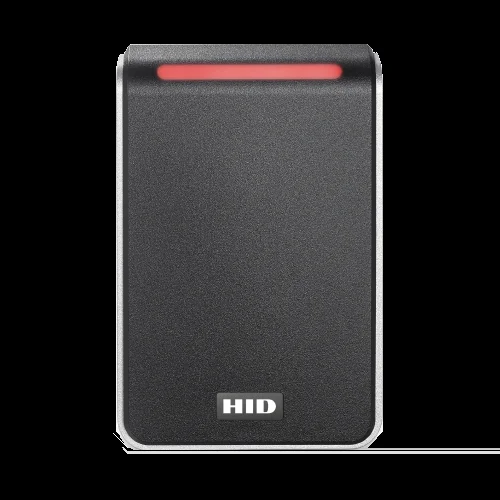

Signo Readers
HID's current flagship reader line (2020+). Aggressive OSDP push, stronger crypto, higher per-reader cost.
Prox / ProxPoint Readers (Legacy)
Pre-iCLASS 125 kHz prox line still running in many NYC buildings from 1998-2012.

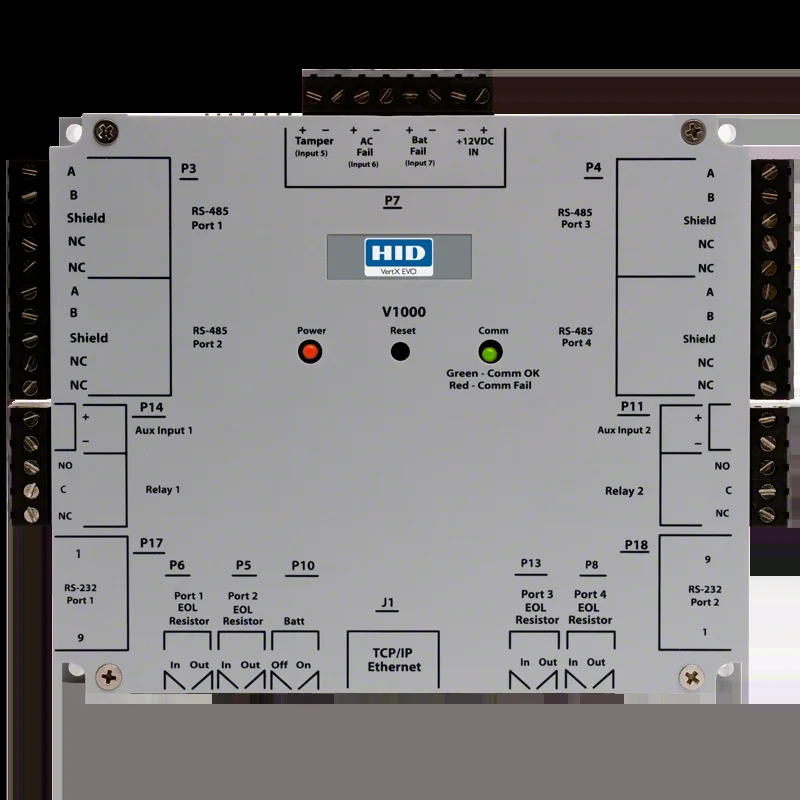

Mercury-Based Controllers (OEM)
HID's Edge EVO and Aero (X1100 family) controllers are Mercury-licensed OEM hardware; VertX is an older HID line that predates the Mercury licensing arrangement. Mercury is also the engine inside Lenel, Software House, and Genetec.

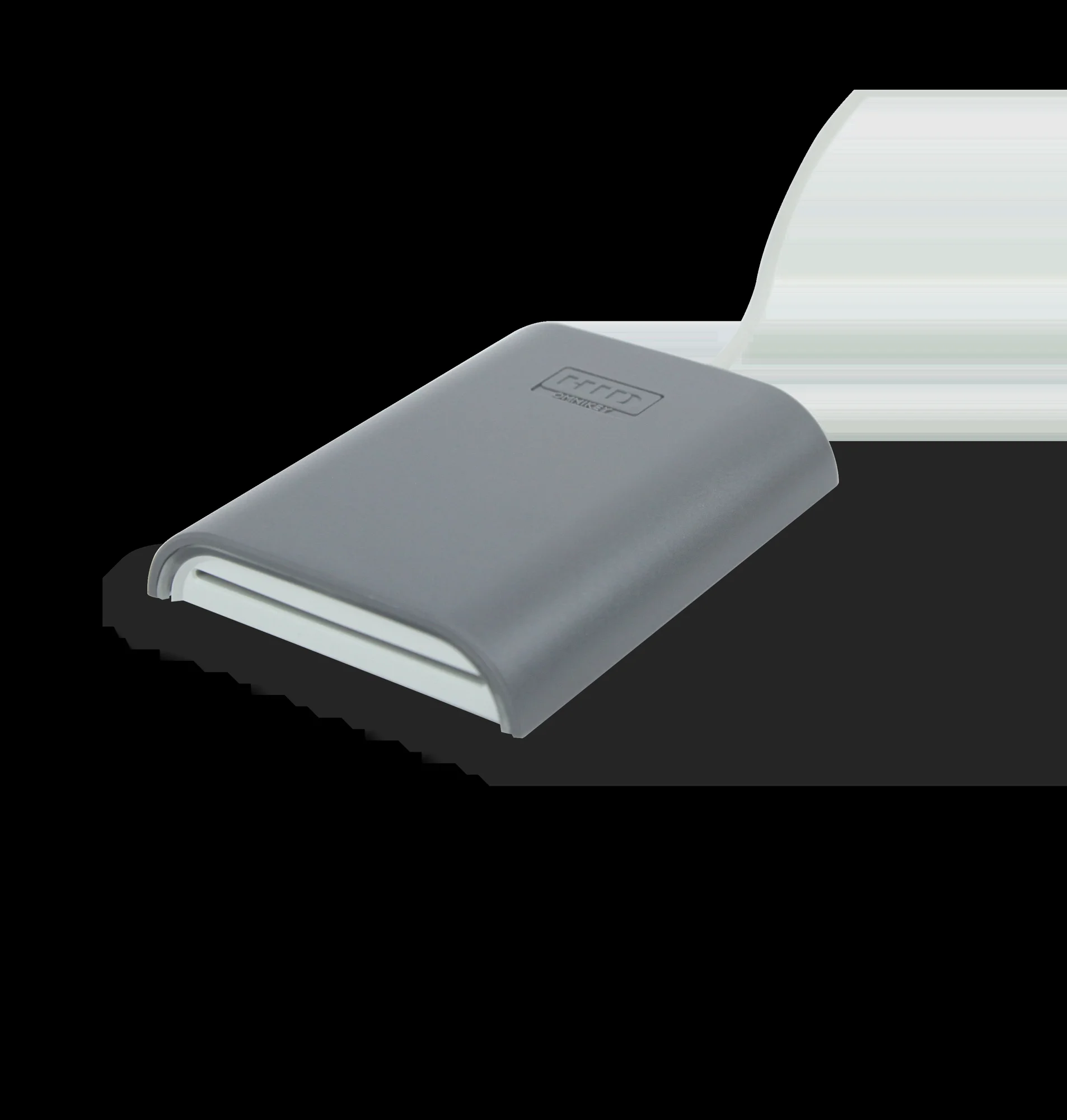

Omnikey Encoders
Desktop and USB card encoders for enrolling credentials to blank cards.

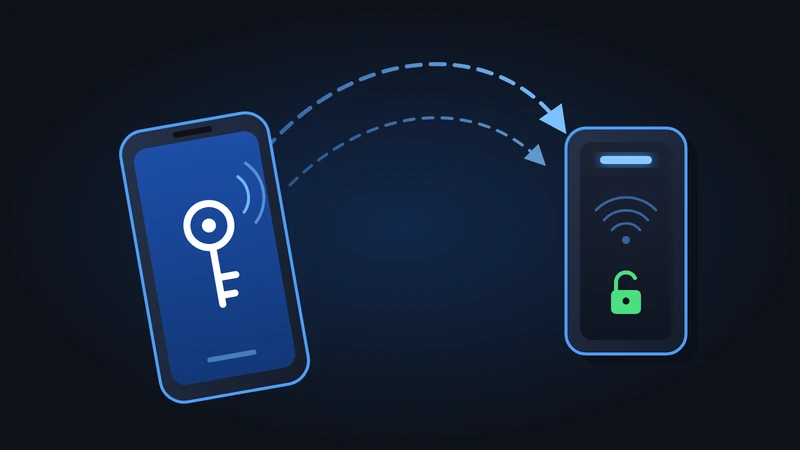

HID Mobile Access / Origo
Smartphone-as-credential platform, licensed per user per year. Replaces or augments physical cards.
What We See in the Field
HID failures split between legacy Prox aging and modern iCLASS firmware/mode issues.
Prox reader range degradation over time
125 kHz Prox readers lose read range as internal ferrite antennas age. Users have to touch the card to the reader instead of waving it. Antenna replacement or whole-reader swap.
Affects: ProxPoint Plus, MiniProx, ProxPro, ThinLine II
Wiegand wiring corrosion in older multi-tenant risers
HID readers in pre-war NYC buildings run on 6-conductor Wiegand through decades-old shared cable chases. Corrosion at splice points causes intermittent reads or ghost events.
Affects: All pre-OSDP installs
iCLASS SE firmware stuck in legacy mode
Readers deployed before 2018 default to Wiegand output and ship without the OSDP license key enabled. Shows up when a modernization tries to switch to OSDP and readers appear deaf. Fix is reader configuration card or Omnikey reprogramming.
Affects: iCLASS SE R10/R15/R40 installed 2013-2018
ThinLine II mullion reader cracking
The narrow ThinLine body fatigues after years of door-slam vibration on exterior mullions. Hairline cracks admit water, kill the reader. Replace with current Signo mullion equivalent.
Affects: HID ThinLine II (5395) on exterior doors
Credential card format mismatch after management transition
New property manager programs new credentials using a different format code than the installed base (e.g., 26-bit vs 37-bit). Readers accept the new cards but refuse the old ones (or vice versa). Format audit at the controller.
Affects: Any HID install with mixed credential eras
Mobile credential enrollment lockout
HID Origo portal access lost when the admin leaves and nobody has the account. New enrollments blocked until HID verifies building ownership.
Affects: Mobile Access deployments
The Service Specifics
HID is dealer-channel but hardware is also sold through major distributors (ADI, Anixter), so parts availability is good. OSDP support is in current firmware but requires enabling via config card on older iCLASS SE units.
Admin recovery for Mobile Access / Origo accounts requires HID verification with proof of building ownership. Same-day resolution is uncommon; plan for 3-5 business days on account recovery scenarios.
The Legacy Install Base
Legacy HID still widespread in long-tenured NYC enterprise.
HID Edge EVO single-door controllers
Still running in many small-commercial NYC sites. Discontinued but field-replaceable with HID Mercury or third-party Mercury controllers.
CardKey / ProxPoint 5355 ProxPro (first-gen)
The grey rectangular reader common in 1990s-2000s NYC offices. Parts gone; we fit a current iCLASS SE or Signo on the existing Wiegand wiring.
Original VertX V1000/V2000 (pre-Edge)
Pre-Aero HID controller line. Firmware support ended; we migrate to Mercury-based current controllers or to a different brand entirely.
If Your Specific Problem Is...
For a specific HID-related symptom.
Card Reader Dead
HID reader not responding to credentials. Reader-side failure diagnostic.
Reader repair → 02 / SymptomDoor Will not Unlock
Credential reads but door will not release. Full-chain diagnostic from HID reader to lock.
Door repair → 03 / SymptomController Offline
HID VertX, Edge, or OEM Mercury controller unreachable.
Controller repair →HID Repair FAQ
HID Install Need Service? We will Keep It Running.
Any reader generation, Wiegand or OSDP, Mobile Access handled. Licensed and insured.
